All of these drawings are 3D Solid models
|
|
 |

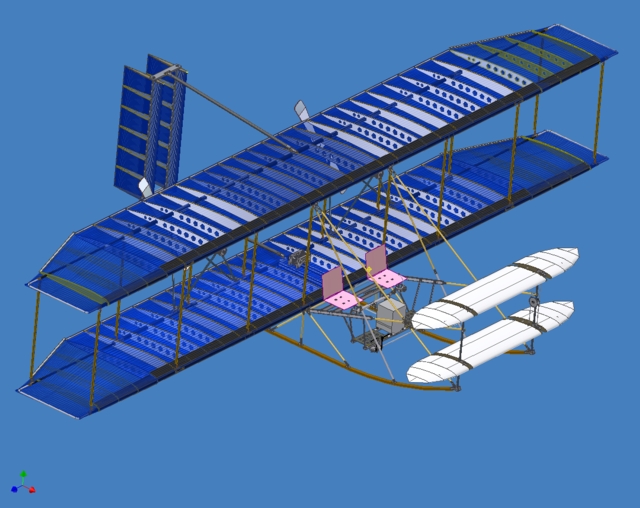

Created with Inventor Utah State University is celebrating the 100th anniversary of the Wright Brothers First Flight. I am a member of this design team. USU goal is to create a high tech composite, flying, full-scale model of the 1905 Wight Flyer. I assembled the modeled components of the original plane using Mechanical DeskTop (see below). By using the model's CG (center of gravity), moments, etc. the team modified the original design to create a more stable, controllable plane using Wings2000. This image is of the modified 1905 Flyer design. |

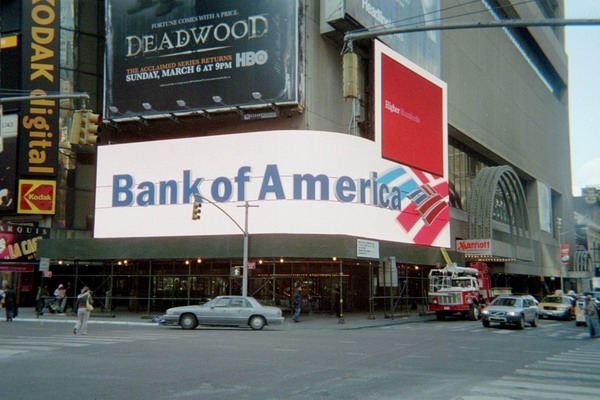

| Bank of America Times Square, NY, NY I designed the video display for the Bank of America sign in Times Square in New York. Was a great project with lots of challenges. |
 |
 |
Created with Mechanical DeskTop This is a 2 cavity mold of a latch. The part is used on a treadmill. |
|

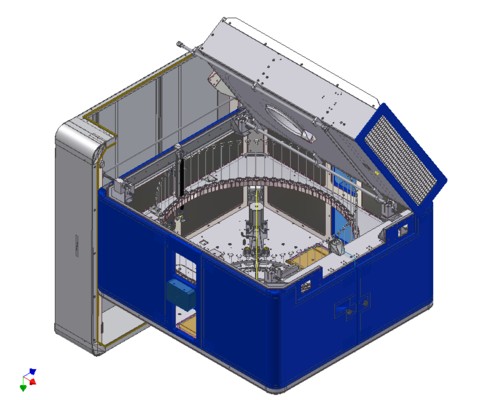

Inside view of Credence Octet 1600 designed with Inventor 8 PRO
This was the next generation Octet from Credence Systems. A 1024 pin SoC tester. I was part of the 3 man team that designed and documented this tester. |
 |
 |
Created using AutoCAD 2000 and 3D Studio VIZ I have also created an AVI file that allows you to "walk thru" this 3D bike shop I created. |
|
Inventor 3D solid

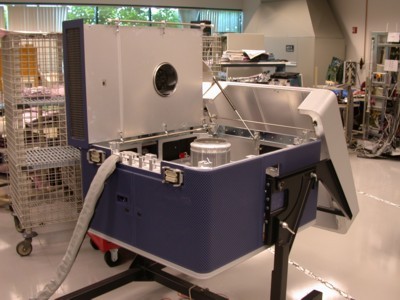

Proto type of the Octet 1600 which I was working on at Credence Systems. |
 |
|

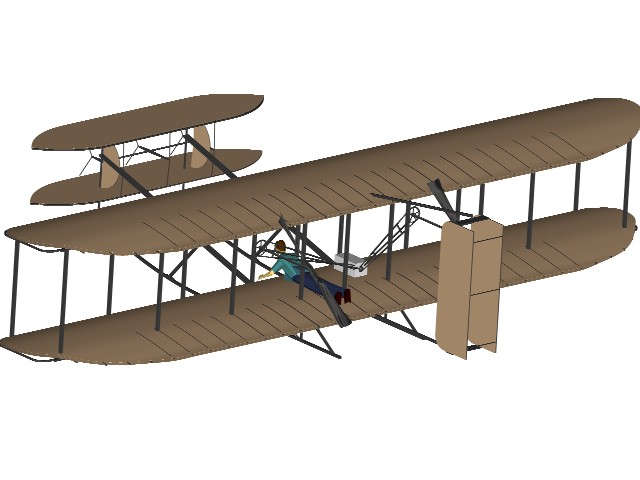

Created with Mechanical DeskTop Utah State University is celebrating the 100th anniversary of the Wright Brothers First Flight. I am a member of this design team. USU goal is to create a high tech composite, flying, full-scale model of the 1905 Wight Flyer. I assembled the modeled components of the original plane using Mechanical DeskTop. |
 |
|
