Here are samples of AutoCAD LT 2D drawings of punch,weld, and bend tooling.
I have created over 83 weld fixtures, 79 punch dies, 24 bend dies, 19 swag dies,
76 check fixtures, and molds for plastic parts.

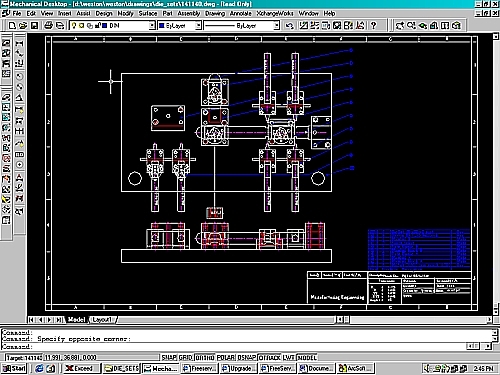

3 Station Cam Punch Die for a handle bar.
This die set has 3 stations with the last punch station, punching from the top and side to make the required hole pattern.

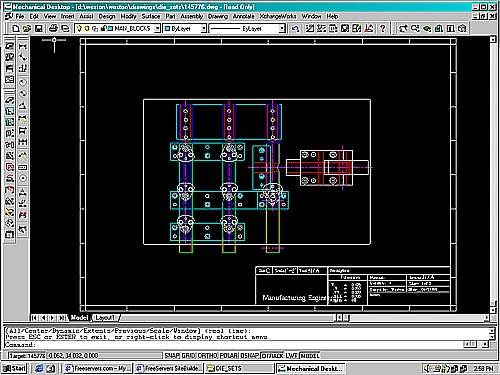

2 Station Cam Punch Die for a handle bar.
This die set punched eight holes on three sides in one hit.
This reduced the labor for this item by 30% over other methods.

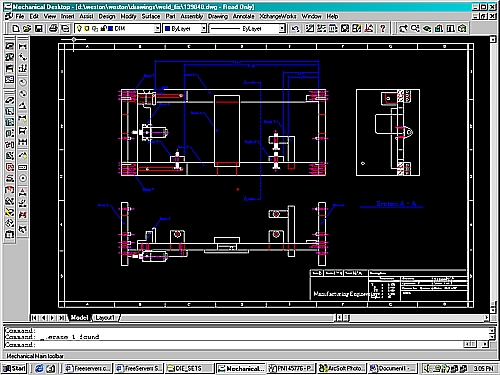

This is a weld fixture for a lift fame.
This fixture held 5 components for welding at one time.
It would pneumatically clamp all the parts in place for the welder.

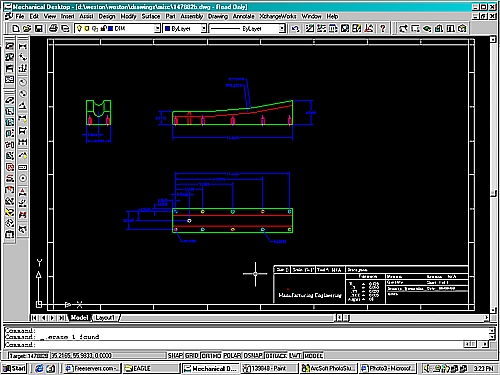

44D Bend-Large Radius Handlebar Bend Die (lower die)
This was a fun one. R&D wanted a 44D bend on a 1 3/4 handlebar.
The bend was to take place on short handlebar that had only
2 1/4 inches of straight. This was the solution I choose to bend this tube.
